Touch Screen Control Centre

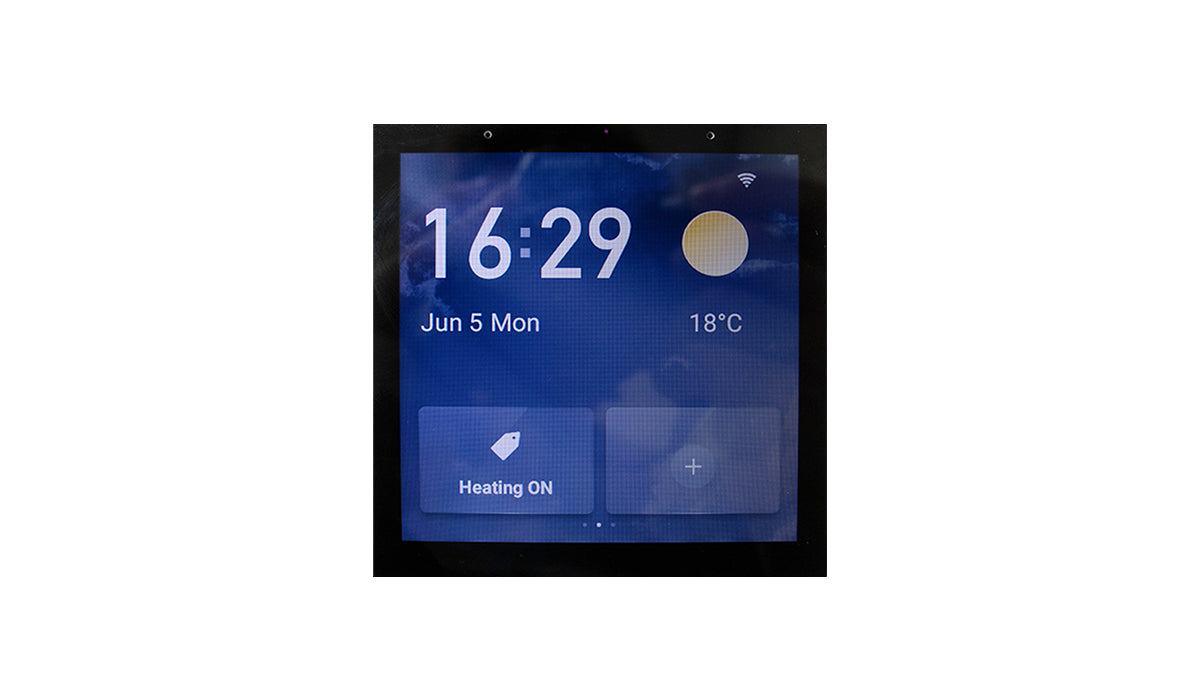

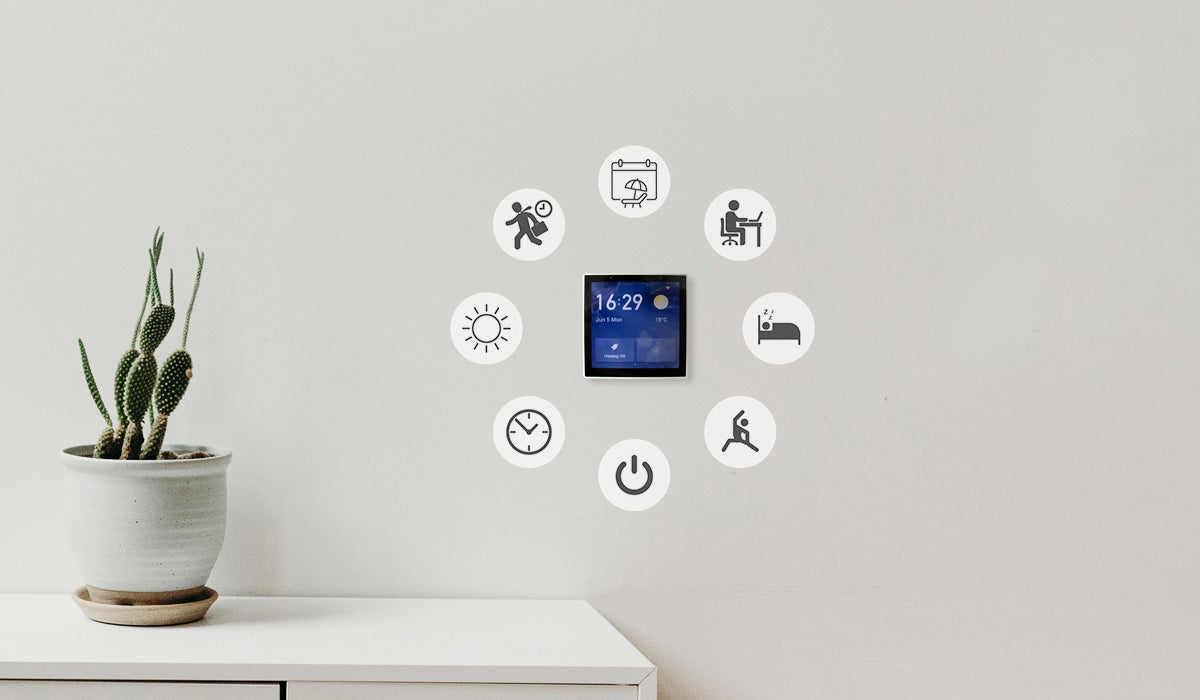

Take full control of your heating routines with the Herschel Touch Screen Control Centre, a central hub where you can activate Smart Life Scenes to fully customise your heating to fit around your schedule. Decided to head out for the day or going on holiday for longer? Save energy by never heating an empty home through Tap-to-Run Scenes, which can override any existing Schedules to ensure you have full control over your infrared heating. The Touch Screen Control Centre can be conveniently controlled using the 4″ touch screen display; where you can quickly access two of your chosen Scenes from the home screen, or simply swipe right to find all Configured Scenes on your Smart Life app. This display also features the time, date, and weather status.

Not home? The Touch Screen Control Centre can also be controlled remotely through the Smart Life App, so no matter where you are, you will always have full control over your infrared heating.

The Touch Screen Control Centre is wired directly to the mains circuit, and must be installed within range of a 2.4Ghz WiFi network. The Touch Screen Control Centre is designed to operate with Smart Life Scenes, so no wiring directly to the panel or thermostats is required.

The unit size is 86 x 86 x 36mm.

The Ultra iQ Range (S-TSCC, S-FSC, S-HSS, and PIR001) are Energy-Saving Accessories and must be used in conjunction with thermostats. These are not thermostats.

Note: The Touch Screen Control Centre will not work with the T-BT Battery Powered Thermostat.

Technical Specifications
Voltage: 100-240VAC 50/60Hz
Installation: Wall-mounted
Wifi Band: 2.4GHz
Programming: Via Smart Life Scenes
App Control: Smartlife App Control

Quality & Safety
Certifications
EU/ UK Electrical Safety: EN62368; EN60950 Compliant
AUS/ NZ Electrical Safety: RCM Compliant
Electromagnetic Compatibility: EN62311; EN62479 Compliant
Radio Emissions Certification: EN300328; EN301489 Compliant
Restriction of Hazardous Substances (RoHS): IEC 62321 Compliant

Warranty: 2 Years

Note: Wiring: Live + Neutral. Appliance is Class II and does not require earthing.
