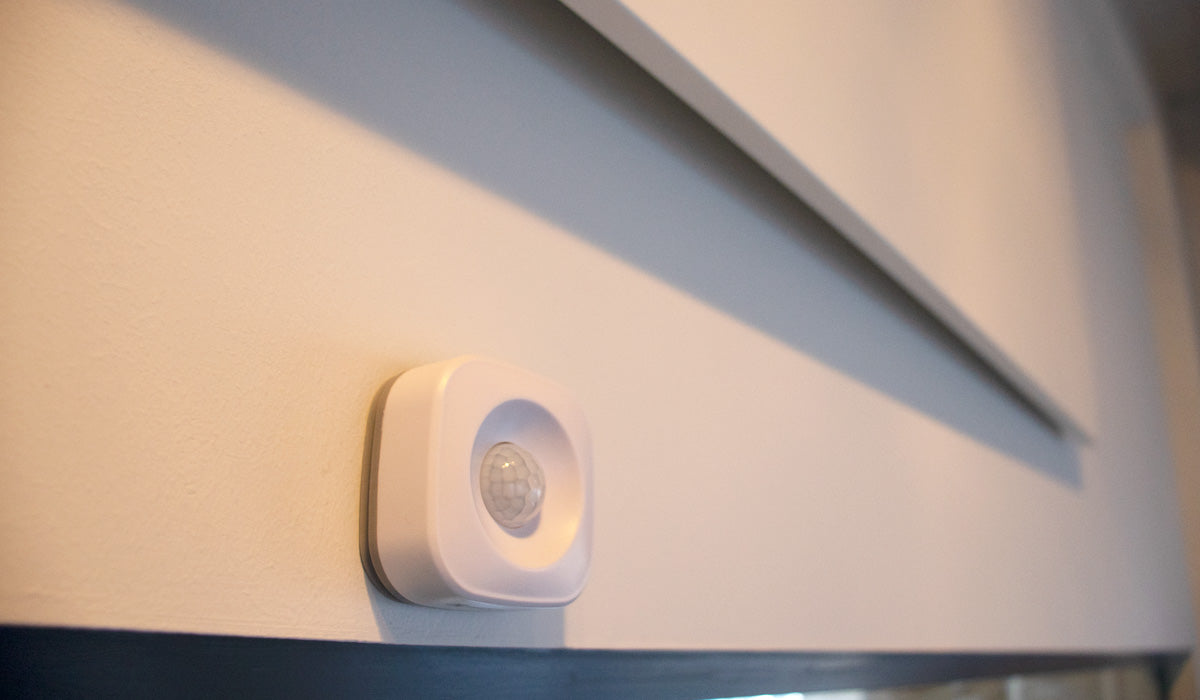

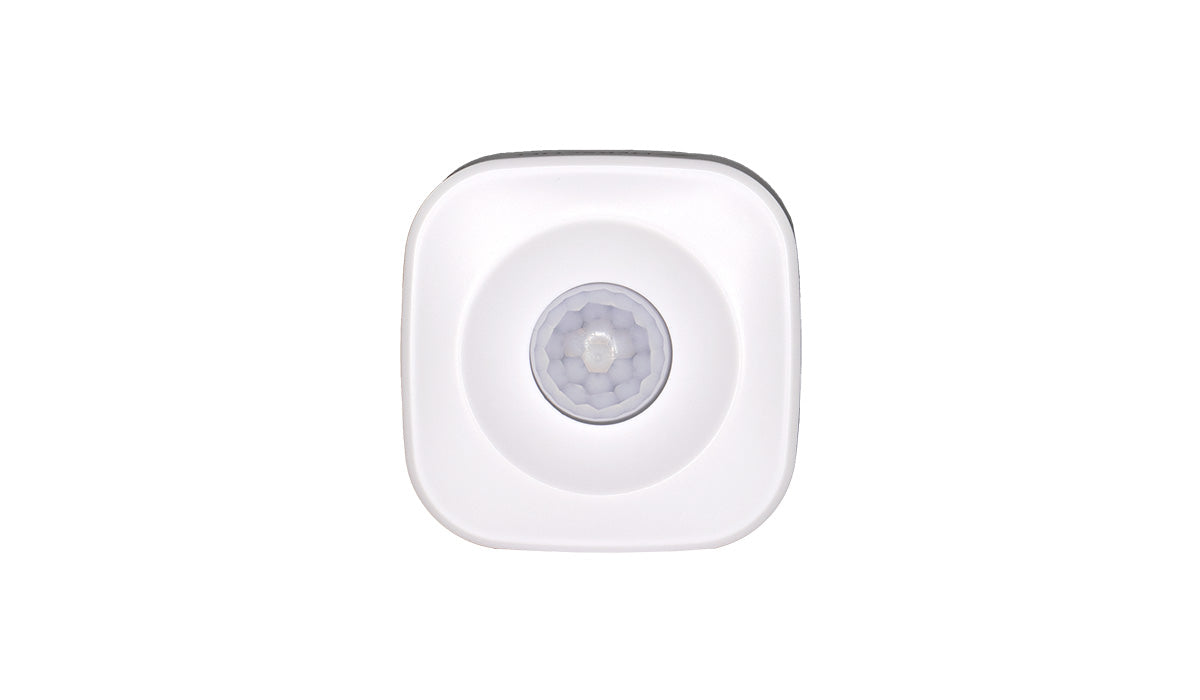

PIR Sensor

The PIR Sensor works with Herschel Wifi-enabled thermostats to give you extra energy savings on your heating based on room occupancy when the heating is on. (Why have the heating on full blast in a room noone is in?).

We recommend you set up your Herschel Thermostats to run in Smart Mode as normal.

But then with the PIR sensor you can add “Scenes” to the Smartlife App (see an example Scene here) to turn the thermostat down if you are away from the room and turn it back up when you return. Say, for example, your living room is usually set for 21°C from 18:30 until 22:30, but you go out to dinner. Rather than keep heating a room you are not in, the PIR Sensor will turn your heating down while you are out.

As another example, you can also use it to keep the heating on if (for example) you are working late in a room that usually turns its heating down earlier in the evening.

The PIR Sensor is a battery operated WiFi unit. You will need one sensor for each room you want to check for occupancy. The sensor will work effectively in small to medium-size houses (e.g. 2-3 bedrooms) when paired directly to the main router. For larger buildings using network extenders, the sensors should be paired with the extenders.

The PIR sensor must be used in conjunction with a Herschel Thermostat, it will not control your heating just on its own.

Watch our video on how to use Smart Life Scenes with the Herschel PIR Sensor:

Technical Specifications
Colour: White
Voltage: 4.5VDC
Power Supply: 3 x 1.5v AAA batteries (not included)
Wifi Band: 2.4GHz
Programming: Via Smart Life Scenes
App Control: Smartlife App Control
Standby current: ≤40µA
Sensitivity to movement: 5 metres
Effective Wifi Range: 20 metres in unrestricted space
Detection arc: 120˚
Operating & Storage Temperature: 30-70˚C / 80-158˚F
Operating & Storage Humidity: 20 – 85%
Size: 65 x 65 x 30mm
Click here to watch our video on how to use Smart Life Scenes with the Herschel PIR Sensor:

Quality & Safety
Certifications
EU/ UK Electrical Safety: EN62368; EN60950 Compliant
AUS/ NZ Electrical Safety: RCM Compliant
Electromagnetic Compatibility: EN62311; EN62479 Compliant
Radio Emissions Certification: EN300328; EN301489 Compliant
Restriction of Hazardous Substances (RoHS): IEC 62321 Compliant

Warranty: 2 Years

Motion Sensor Instructions
